Show quick links. Hide Hide permanently. Seiko epson corporation receipt printer specification pages. Page 2 Neither is any liability assumed for damages resulting from the use of the information contained herein.
Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this product or third parties for damages, losses, costs, or expenses incurred by purchaser or third parties as a result of: accident, misuse, or abuse of this product or unauthorized modifications, repairs, or alterations to this product, or excluding the U.
Page 3: Important Safety Information If water or other liquid spills into this equipment, unplug the AC cable immediately, and then contact your dealer or a Seiko Epson service center for advice.
Continued usage may lead to fire. Do not use aerosol sprayers containing flammable gas inside or around this product.
Doing so may cause fire. Page 6: Part Names Note: To make the Paper LED light up when the roll paper is nearly out, enable the paper near- end sensor with the utility software for the TM-T82, and use the printer horizontally with the paper exit on top.
Feed button This button feeds paper. Hook Connect the other end of the interface cable to the computer. Connect the AC cable to the AC adapter.
Page 8: Installing The Printer When installing the printer vertically, be sure to attach the included control panel label for vertical installation on the roll paper cover, and attach 4 rubber feet in the rectangular indents in the printer case, as shown in the illustration below. Page 9 Attach 2 rubber feet in the rectangular indents in the printer case, and attach 2 rubber feet within the scribed line on the hanging bracket.

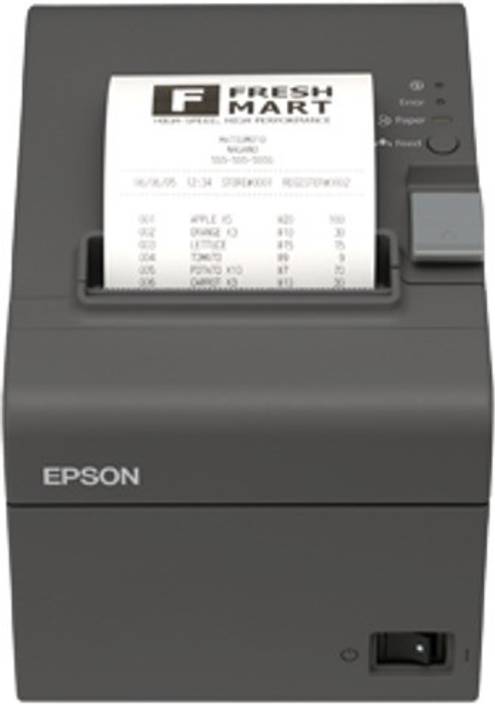

Epson TM-T82 Manuals
Place the printer with the wall-hanging-bracket-side down. Install the wall hanging bracket on the printer, and fix it using the screws removed in Step 2.
How to Change the Interface to USB on a Epson Tm-T82 Ethernet Receipt Printer
Page Installing Roll Paper Align the holes in the wall hanging bracket with the screws on the wall, and hook it securely. Installing Roll Paper Follow the steps below to install the roll paper.
Use the cover open lever to open the roll paper cover. Page 12 Remove the used roll paper core if any, and insert the roll paper.
The correct direction of the paper is shown in the illustration below. Pull out some paper, and close the roll paper cover. When the printer power is on, the roll paper is automatically cut.
How to install a Epson TM-T82 USB Printer on a Windows PC
Page Changing The Paper Width Once you change the paper width from 80 to 58 mm, you cannot change it back to 80 mm. When changing the paper width, be sure to make the setting for the paper width with the utility software for the TM-T Open the roll paper cover.
Page 15 Turn the knob until you see a triangle in the opening. This returns the cutter blade to the normal position.
See the operating instructions on the back of the cutter cover. Knob Triangle Install the cutter cover.
Open the roll paper cover and remove the jammed paper. Page Cleaning The Printer Case Turn off the printer, open the roll paper cover, and clean the thermal elements of the thermal head with a cotton swab moistened with an alcohol solvent ethanol or IPA. Epson recommends cleaning the thermal head periodically generally every 3 months to maintain receipt print quality.
